Hobbywing EZRun Max8 V3 Waterproof Brushless ESC w/Program Box & XT90 Plug

RTR Meets Performance

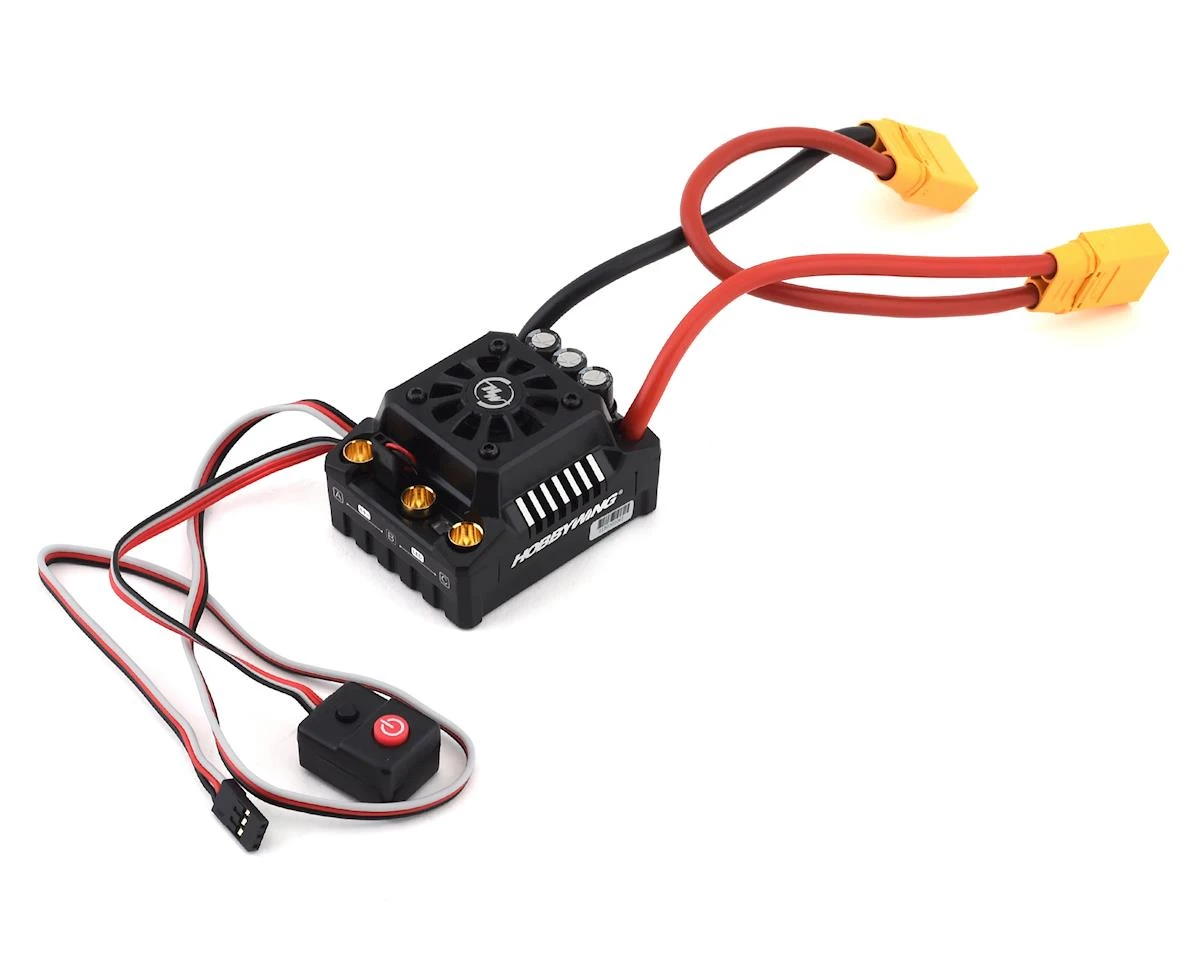

This is the Hobbywing EZRun Max8 V3 Waterproof Brushless ESC, with installed XT90 connectors. This package also includes a Hobbywing Program Box to adjust ESC program settings.

The Max8 ESC provides the optimal upgrade for many popular 1/8 scale monster trucks like the Traxxas Revo, Summit, HPI Savage and Thunder Tiger E-Mat. The ESC is also applicable with many other trucks and buggies.

NOTE: Photos show T-Plugs on the ESC. This ESC has been updated and now includes XT90 connectors.

Features:

• Waterproof!
• Sensorless Brushless Operation
• 6S LiPo Compatible
• XT90 Plugs
• Includes Program Box

Specifications:
Continuous Current: 150A
Peak Current: 950A
Plug Type: XT90
Motor Type: Sensorless Brushless
Applications: 1/8 Touring Car, Buggy, Truggy, Monster Truck
Brushless Motor Limit 4S LiPo/12-Cell NiMH: ?3000 (4274 size motor)
Brushless Motor Limit 6S LiPo/18-Cell NiMH: ?2400 (4274 size motor)
LiPo/NiMH Cells: 3-6S LiPo / 9-18 Cell NiMH
BEC Output: 7.4V Switchable, Continuous current of 6A (Switch mode BEC)
Cooling Fan: Powered by the stable BEC voltage of 6V/7.2V
Size (LxWxH): 59.8x48x36.8mm
Weight: 173.5g
Programming Port: Fan/PRG Port

Includes:

• EZRun Max8 ESC w/XT90

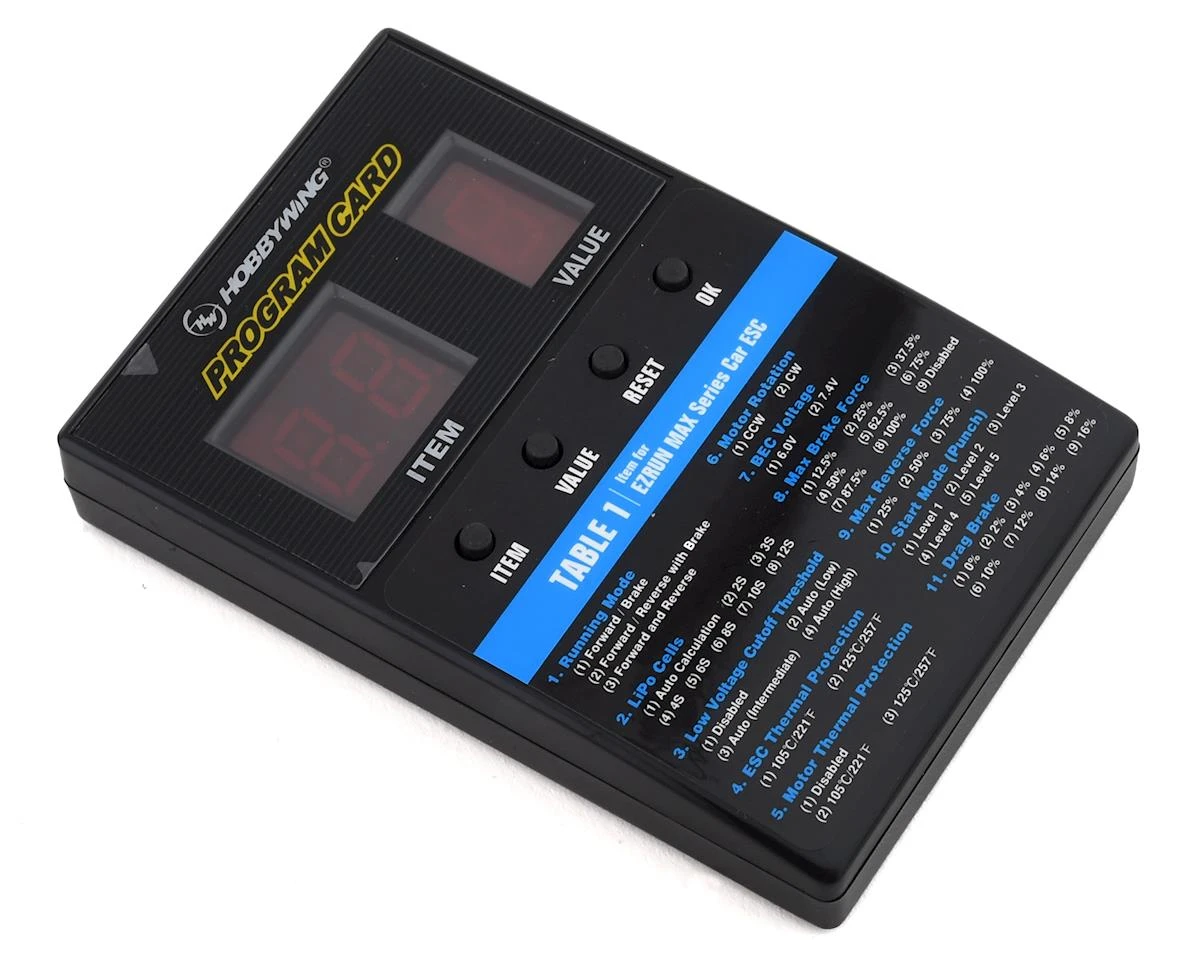

• EZRun LED Program Card

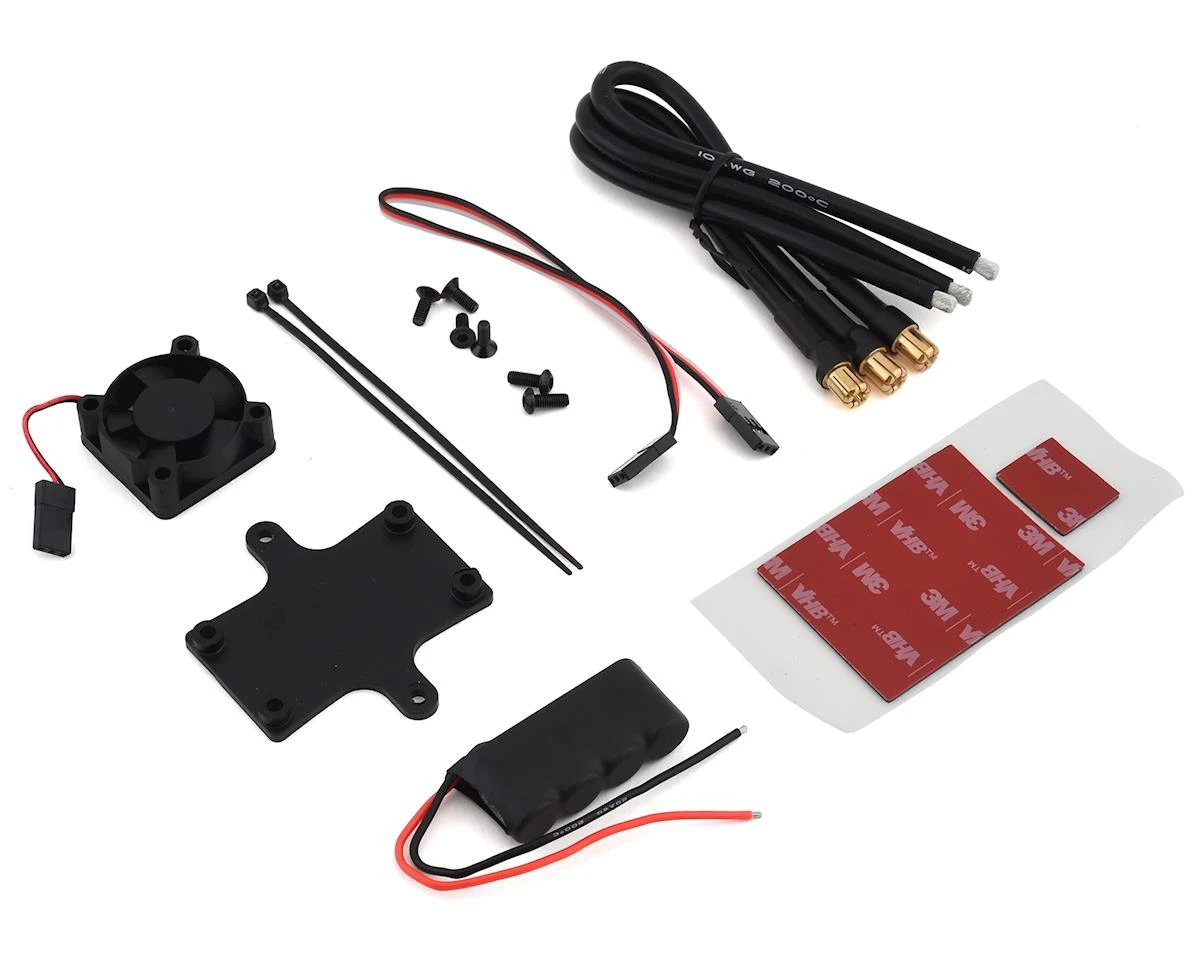

• Accessories (double sided tape, etc)

This product was added to our catalog on July 14, 2015
