Hobbywing EZRun MAX5 V3 Sensorless Brushless ESC & Motor Combo w/56113SL (800kV)
Original price was: $369.99.$88.00Current price is: $88.00.
- Effortless solutions, excellent customer care.
- Quick responses, top-notch service.
- Efficient and effective customer service, online.
- Green products, guaranteed.

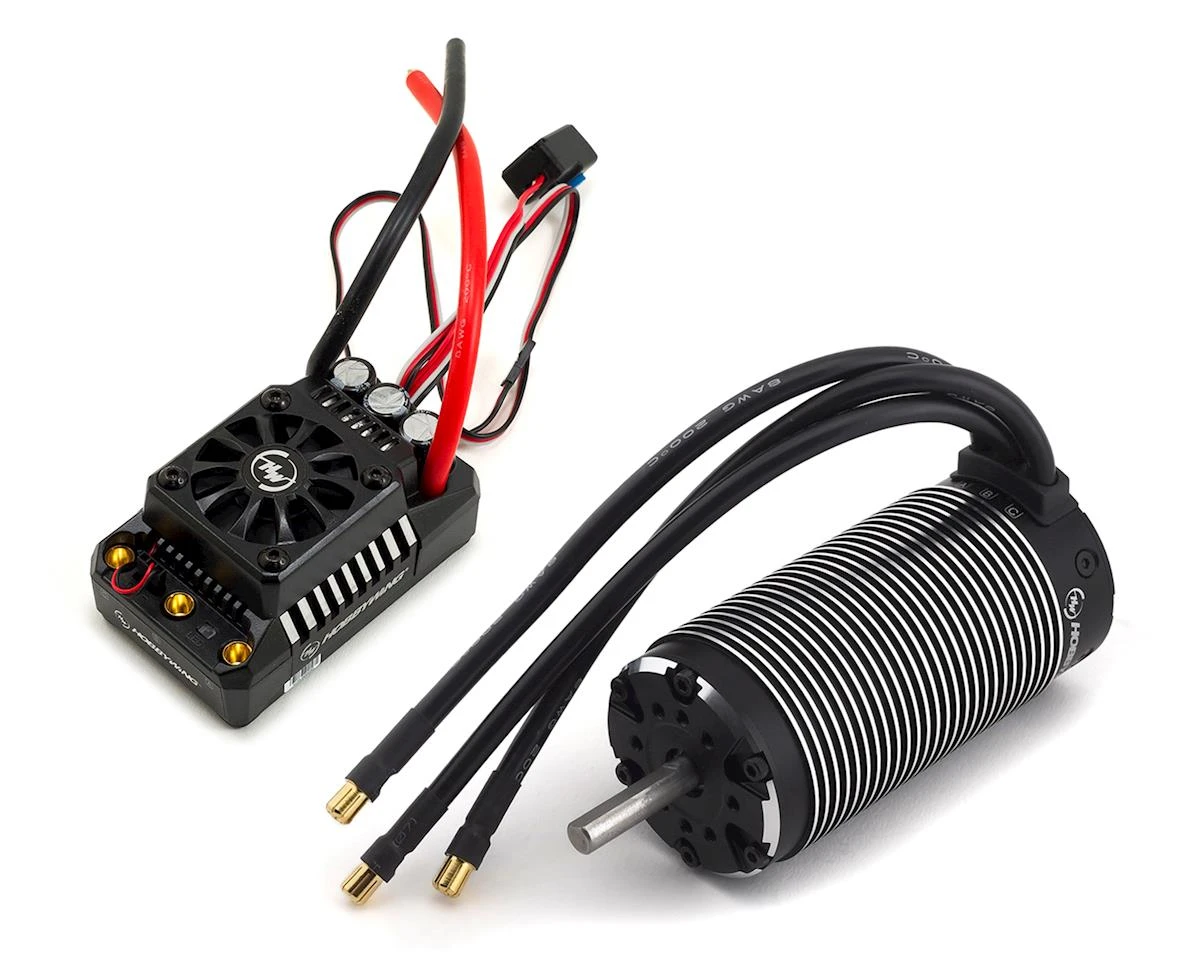

EZRun MAX5 V3 Sensorless Brushless ESC & Motor Combo includes the 56113SL 1/5 scale, 800kV motor and is a great option for high-end, aggressively powered, large scale 8S builds.
Specifications:

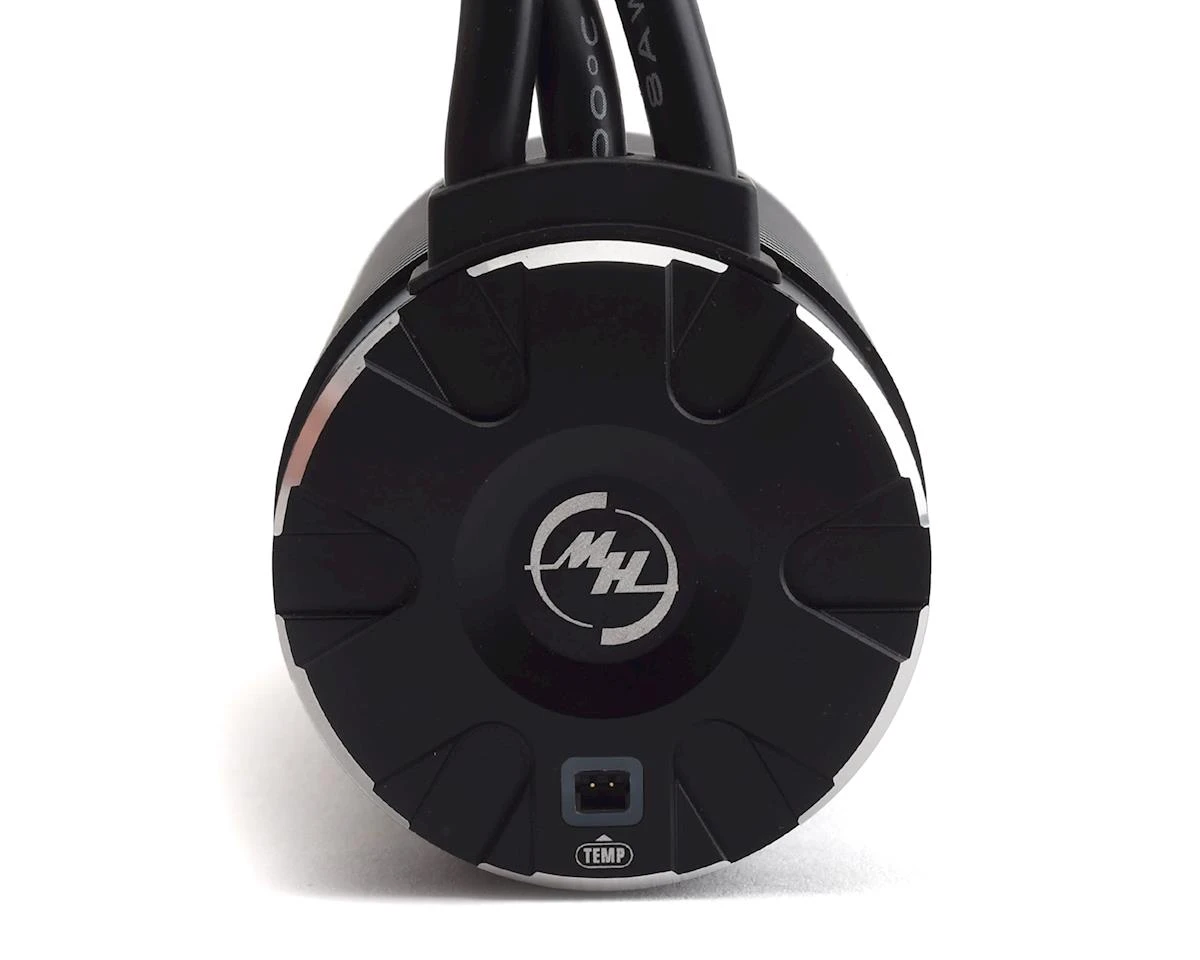

- Motor:
- Model: 56113-800KV
- Pole: 4
- KV (No-load): 800KV
- Resistance: 0.00049 Ω
- Current (No-load): 3.2 A
- Max. Output Power: 5800 W
- Current at the point of M.O.P: 200 A
- Motor Diameter: 56mm
- Motor Length: 113mm
- Shaft Diameter: 8.0mm
- Shaft Length: 31.0mm
- LiPo Cells: 3-8
- Weight: 1210g (42.68oz)
- Application: 1/5th RC Vehicles, Truck/Dragster
- ESC:
- Continuous Current: 200A
- Peak Current: 1,300A
- Motor Type: Sensored / Sensorless Brushless Motor (only in sensorless mode)
- Applications: 1/5th Touring Car, Buggy, Truggy and Truck
- Motor Limit: With 8S LiPo/24-Cell NiMH: KV ≤1000 (58110 size motor)
- LiPo/NiMH Cells: 9-24S NiMH, 3-8S LiPo
- BEC Output: 6V/7.2V Switchable, Continuous Current of 6A (Switch-mode BEC)
- Cooling Fan: Powered by the stable BEC voltage of 6V/7.2V
- Connectors: Input End: None, Output End: Female 6.5mm Gold Connectors (pre-soldered onto the PCB of the speed controller)
- Size (LxWxH): 93.35×58.12×47.81mm
- Weight: 342g
- Programming Port: FAN /PRG Port
This product was added to our catalog on April 25, 2019
